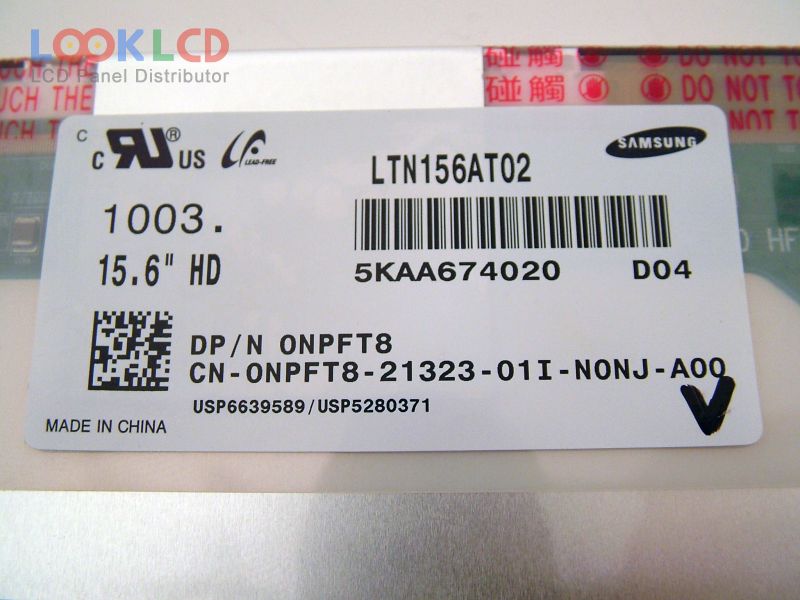

| ክፍል ቁጥር | LTN156AT02-D04 |
| የምርት ስም | Samsung |
| መጠን | 15.6 |
| መተግበሪያ | NBPC |
| ጥራት | 1366×768 |
| ቅንብር | LCM |
| ብሩህነት | 220 |
| CR | 600:1 |
| ቀለሞች | 262K |
| የጀርባ ብርሃን | WLED |
| በይነገጽ | LVDS |
| የፓነል ብራንድ | SAMSUNG |
| የፓነል ሞዴል | LTN156AT02-D04 16 Compatible model |
| የፓነል ዓይነት | a-Si TFT-LCD , LCM |
| የፓነል መጠን | 15.6 inch |
| መፍታት | 1366(RGB)×768 , WXGA |
| የማሳያ ሁነታ | TN, Normally White, Transmissive |
| ንቁ አካባቢ | 344.232×193.536 mm |
| መዘርዘር | 359.3×209.5×5.5 mm |
| የቅርጽ ዘይቤ | Wedge (PCBA Bent, Depth ≥5.2mm) |
| ላዩን | Glare (Haze 0%), Hard coating (3H) |
| ብሩህነት | 220 cd/m² (Typ.) |
| የንፅፅር ጥምርታ | 600:1 (Typ.) |
| የማሳያ ቀለሞች | 262K (6-bit), CIE193160% |
| የምላሽ ጊዜ | 25 (Typ.)(Tr+Td) |
| የመመልከቻ ማዕዘን | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| ድግግሞሽ | 60Hz |
| የመብራት ዓይነት | 8S6PWLEDEmbedded (LED Driver) |
| የምልክት በይነገጽ | LVDS (1 ch, 6-bit), 40 pins |
| የግቤት ቮልቴጅ | 3.3V (Typ.) |
| ማመልከቻ | NBPC |
